In conjunction with the Model FM-4 FinMaster™, Tridan has developed a comprehensive and dedicated system of stamping tooling stations for the progressive forming of plate-type fins or other needed manufacturing components.
Tridan® has chosen the Swing-type to be used in conjunction with the Upper Vacuum Unit. The Swing-Type combines simplicity, ruggedness and low cost into a design, which allows virtually uninterrupted operation on the FinMaster™, with the implied gains in productivity.

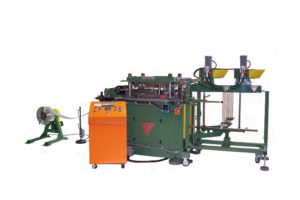

The Model FM FINMASTER™ Fin Line is one of a family of Fin Lines built by TRIDAN®. While this Fin Line System is specifically designed for the low volume producer, TRIDAN®’s other lines are directed at medium and high volume manufacturers of heat transfer coils for air conditioning and refrigeration applications.
The function of the Fin Stock Uncoiling System is to supply fin material to the Fin Stock Lubrication System and the Fin Tooling in a smooth uninterrupted manner, and with a minimal amount of tension being placed on the fin stock.
