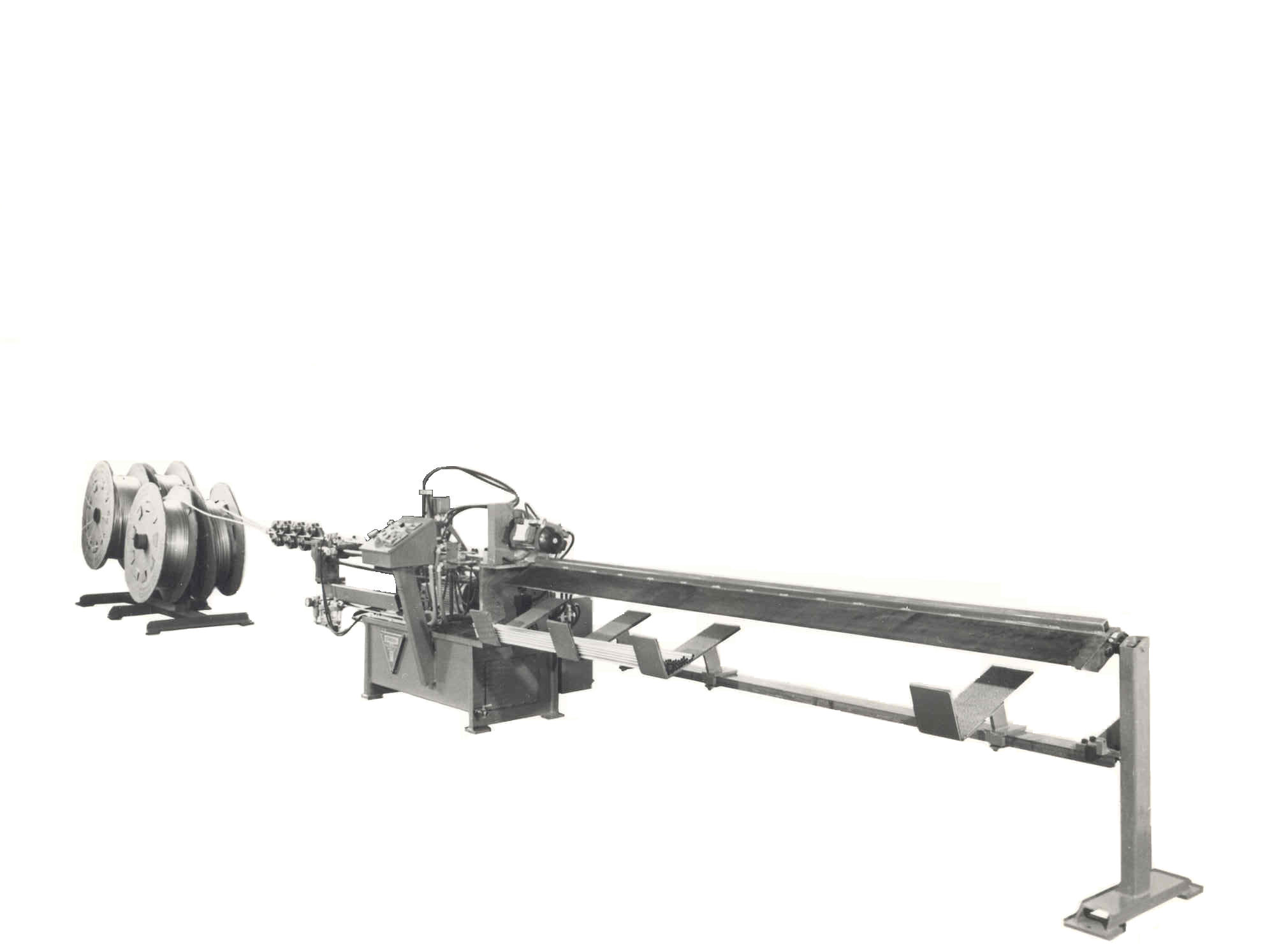

Saw Cutoff - STQSThe production application of the TRIDAN Model STQS-4 is to straighten and cut to a pre-determined length level-wound coiled tubing of copper or aluminum. It is a fully integrated system consisting of a Tube Straightening, Sizing, and Lubrication Section. Also, it has an adjustable-length Tube Feeding Section and a chipless Tube Cutoff Section. Supporting equipment includes a Tube Decoiling System, a Tube Runout/Collector System, and a Tube End Deburring Stand. The Control System is designed in such a manner that all operations are sequenced fully automatically. Also, it may be individually placed under manual control.

Saw Cutoff Features

The Tube Straightening, Feeding, and Cutoff Sections are mounted on a machined base plate. Which also serves as the top of the weldment-constructed hydraulic reservoir. This over-sized reservoir is an integral part of the machine’s frame. Furthermore, it is furnished with a liquid level gauge and thermometer, as standard equipment.

The Tube Decoiling System is built on a weldment frame of sufficient size and rigidity to support the number and size of coils dictated by the application. In addition, the Tube Runout/Collector System is designed to provide support for the tubing during its feeding, and an area is provided for the collection of cut tubes. When it comes to HVAC production machines, nobody does it better than Tridan.

The Tube End Deburring Stand, if purchased, is integrated into the Tube Runout/Collector System, and provides a method for removing the burrs on the tube end caused by the saw cutoff. Now that Tridan International is part of the Innovative Automation family, we are able to provide even more great products. With decades of experience in building quality machines, Tridan is always the right choice. Finally, request a quote today for the STQS-4 or any of the other fin production machines.
