AHBQ/SL – Bender/Straightener

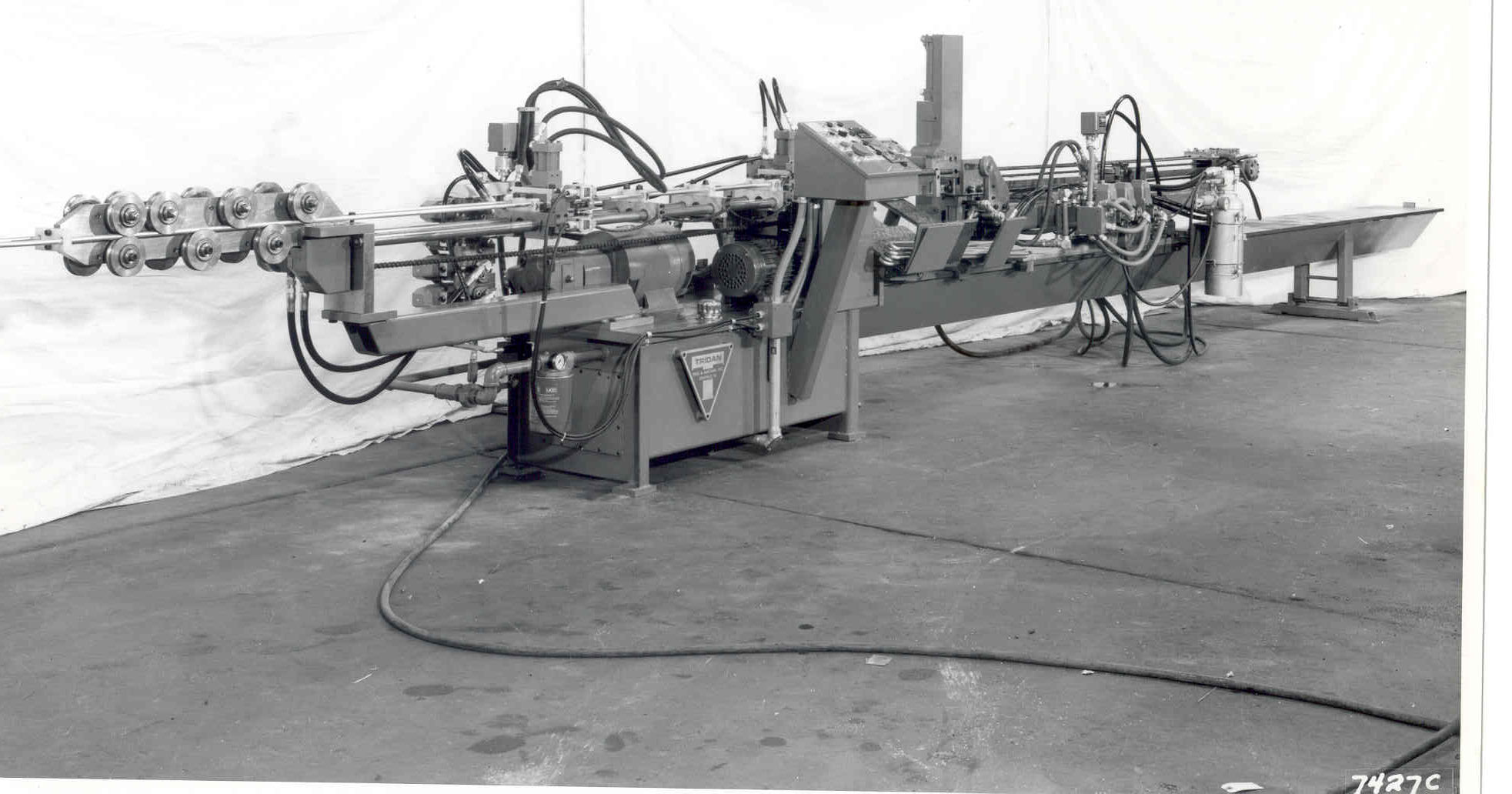

AHBQ/SL - Bender/StraightenerThe Model AHBQ/SL-4 Qual-Ekon Combination Automatic Hairpin Bender – Tube Straightener & Cut-to-Length Line is one of a family, of six level-wound coil fed hairpin benders built by TRIDAN; which utilize an orbital type chip-free or chipless tube cutoff system.

The Model AHBM/SL-4 processes four (4) hairpins per cycle, while the Model AHBV/SL-4 six (6) hairpins per cycle. In addition, all three models are available as Hairpin Benders – Only.

GENERAL MACHINE DESCRIPTION:
The production application of the TRIDAN Model AHBQ/SL-4 is to produce either hairpin bends or straight tube lengths from level-wound coiled tubing of copper or aluminum in a fully automatic manner.

It is a fully integrated system consisting of a Tube Straightening, Sizing, and Lubrication Section, adjustable length Tube Feeding Section, a chipless Tube Cutoff Section, and Hairpin Bender Section. Supporting equipment include a Tube Decoiling System. The Control System is designed in such a manner that all operations are sequenced fully automatically or may be individually placed under manual control.
