Extrusion Straightener – STDS

Extrusion Straightener - STDS

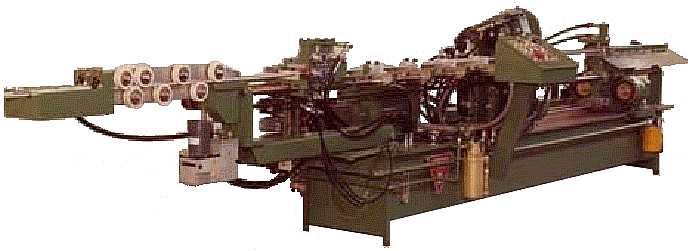

A Tube Straightener and Cut-to-Length Line designed to size, straighten, and cut-to-length ribbed aluminum extrusions. An extrusion straightener is a piece of equipment used in the manufacturing and processing of materials. Particularly in the field of metalworking and plastics. It’s commonly employed in the extrusion process, which involves forcing a material, often in a molten state, through a die to create a continuous shape with a specific cross-section. This process is used in various industries to produce items like metal rods, pipes, tubing, and plastic products.

The extrusion process can sometimes lead to imperfections or irregularities in the shape and alignment of the material being extruded. This is especially true when dealing with long lengths of material. An extrusion straightener is designed to address these imperfections and ensure the final product is straight, uniform, and meets the required specifications.

Extrusion Straightener

Here’s how an extrusion straightener works:

  • Entry Section: The extruded material, which could be a metal rod or plastic profile, enters the straightener. It might be fed through rollers or other adjustable mechanisms that help guide the material.
  • Adjustment Mechanisms: The straightener typically consists of a series of adjustable rollers or bending devices that can be fine-tuned to apply controlled pressure on different parts of the material. These rollers are set up in a way that counteracts any bending or curving that might have occurred during the extrusion process.
  • Straightening Process: As the material passes through the straightener, the rollers apply pressure to deform the material in a controlled manner. This process gradually removes any bends, twists, or unevenness, resulting in a straighter and more uniform product.
  • Monitoring and Quality Control: Some modern extrusion straighteners might have sensors or measuring devices that monitor the material’s alignment and make real-time adjustments to ensure accurate straightening. This helps maintain consistent quality throughout the production process.
  • Exit Section: Once the material has passed through the straightening process, it emerges from the other end in a much straighter and uniform condition, ready for further processing or use.

Extrusion straighteners are essential for industries that require high precision and quality in their products, such as construction, automotive, aerospace, and manufacturing. By ensuring that the extruded materials are straight and free from deformities, these straighteners contribute to the overall quality and performance of the final products. Finally, order your Extrusion Straightener today from Tridan International!
