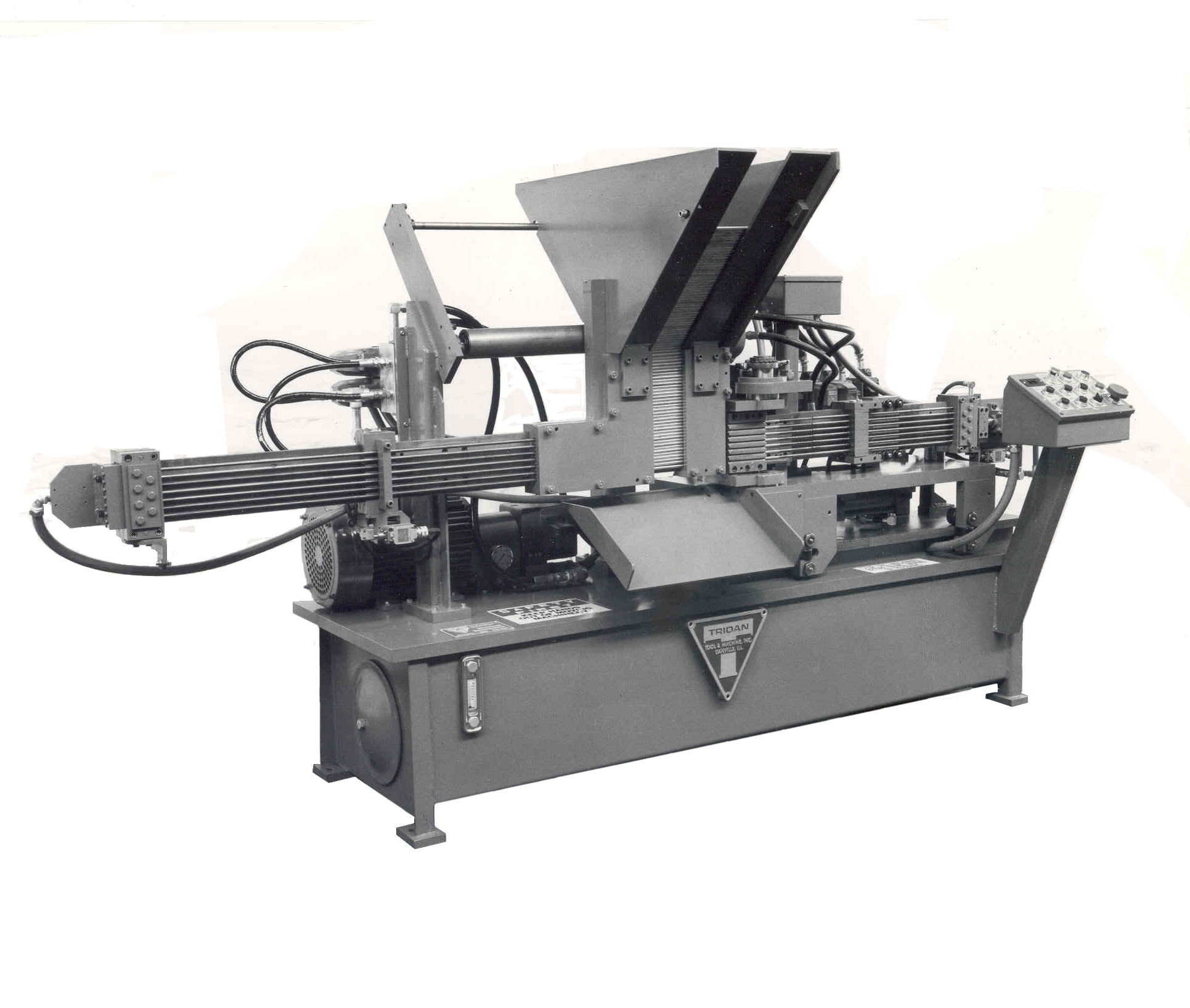

AHBS - Automatic Hopper Fed, ShortThe Model AHBS-1 Automatic Hopper-Fed Hairpin Bender is one of two (2) hopper fed hairpin benders built by TRIDAN to augment our line of level-would coil fed and hand fed hairpin benders. Also, the other hopper fed hairpin bender is the Model AHBH-1, which is designed for medium tangent leg length hairpins. Both benders process pre-cut straight lengths directly into hairpin bends and are fully automatic.

Automatic Hopper Fed

The production application of the TRIDAN Model AHBS-1 is to produce hairpin bends from short pre-cut straight tube lengths. Also, these can be copper or aluminum having outside diameters between 5/16″(7.94mm) and 1/2″(12.7mm). The AHBS-1 bends seven (7) hairpins per cycle on 5/16″(7.94mm)OD tubing, six (6) per cycle on 3/8″(9.525mm), and four (4) per cycle on 1/2″(12.7mm)OD. It is a fully integrated system consisting of a Hopper Feed Unit and Hairpin Bender. The Control System is designed in such a manner that all operations are sequenced fully automatically. They may be also individually placed under manual control.

The Hopper Feed Unit is designed to meter and feed the required number of tube lengths to the Model AHBS-1 Hairpin Bender, which forms the hairpin bends, and ejects the completed hairpins. The bender and hopper are integrated together and mounted on a machined base plate, which also serves as the top of the weldment-constructed hydraulic reservoir. This over-sized reservoir is an integral part of the machine’s frame and is furnished as standard with a liquid level gauge and thermometer.
